Approved Supplier U201589 26920-4-4 | Hose of South Texas, Inc
Approved Supplier U201589 26920-4-4
  1. pin-int

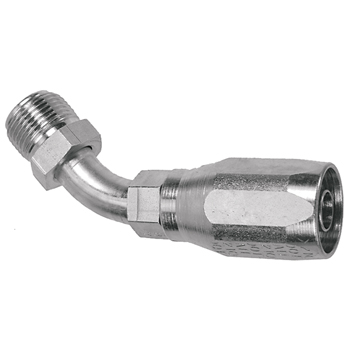

Field Attachable Hydraulic Hose Fitting, 3/16 in Hose x 1/4 in Male SAE Inverted Flare Swivel, Steel

  • Part#: 26920-4-4
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Field Attachable Hydraulic Hose Fitting, Hose Fitting, 3/16 in Connection Size 1, Hose Connection Type 1, 1/4 in Connection Size 2, Male SAE Inverted Flare Swivel Connection Type 2, Hose|Male SAE Inverted Flared Swivel Connection, 1.51 in Cut-Off Factor, Steel, Steel Material Construction, 3/8 x 5/8 x 7/16 in Hex, 201, 206, 266, 221FR and SS25UL Hoses For Use With, 2.29 in L

Connection Size 1      :      3/16 in
Connection Size 2      :      1/4 in
Connection Type 1      :      Hose
Connection Type 2      :      Male SAE Inverted Flare Swivel
Connection Type      :      Hose|Male SAE Inverted Flared Swivel
Cut-Off Factor      :      1.51 in
Dimensions      :      2.29 in L
Fitting Type      :      Hose Fitting
For Use With      :      201, 206, 266, 221FR and SS25UL Hoses
Hex Size      :      3/8 x 5/8 x 7/16 in
Material Construction      :      Steel
Material      :      Steel
