High pressure compact four spiral high abrasion resistance hydraulic hose. HS4K provides exceptional flexibility, rated to 1 million cycles at 1/2 minimum bend radius compared to SAE or DIN hoses.

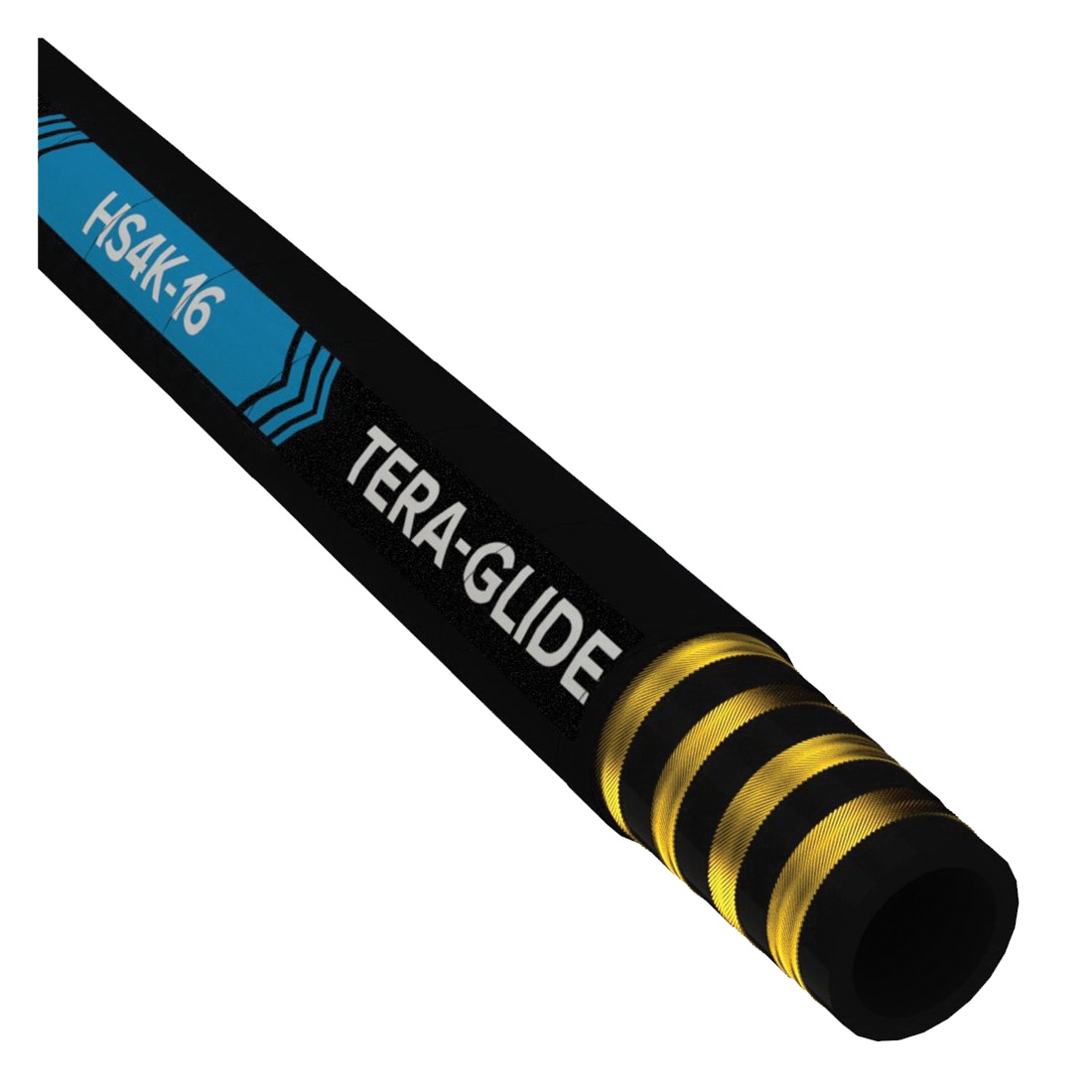

TEXCEL® High Pressure Hydraulic Hose, Series: TERA-GLIDE HS4K Series, #16 Nominal, 1 in ID, 1.46 in OD, Synthetic Rubber Tube, Synthetic Rubber Cover, 4-High Tensile Spiral Steel Wire Reinforcement, Black Hose, 5.9 in Bend Radius, 4100 psi, 250 deg F Temperature High, -40 deg F Temperature Low
| Bend Radius | : | 5.9 in |
| Cover Material | : | Synthetic Rubber |
| Hose Color | : | Black |
| Inside Diameter | : | 1 in |
| Nominal Size | : | #16 |
| Outside Diameter | : | 1.46 in |
| Pressure Rating | : | 4100 psi |
| Reinforcement | : | 4-High Tensile Spiral Steel Wire |
| Series | : | TERA-GLIDE HS4K Series |
| Temperature High | : | 250 deg F |
| Temperature Low | : | -40 deg F |
| Tube Material | : | Synthetic Rubber |
- Spiral isobaric high abrasion-resistant hose
- Resistant to oil, ozone and to UV rays
